Talaria sting portugal

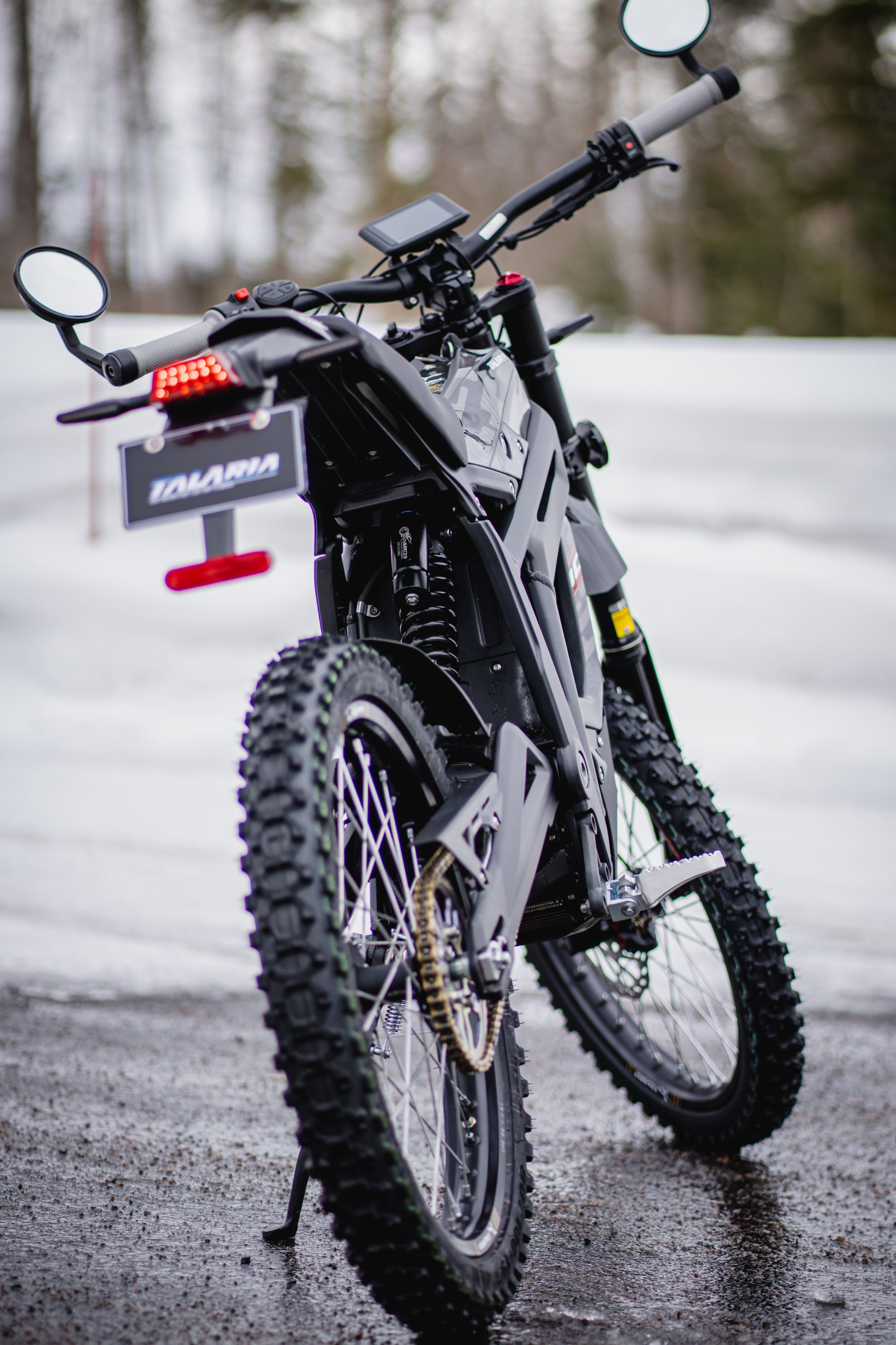

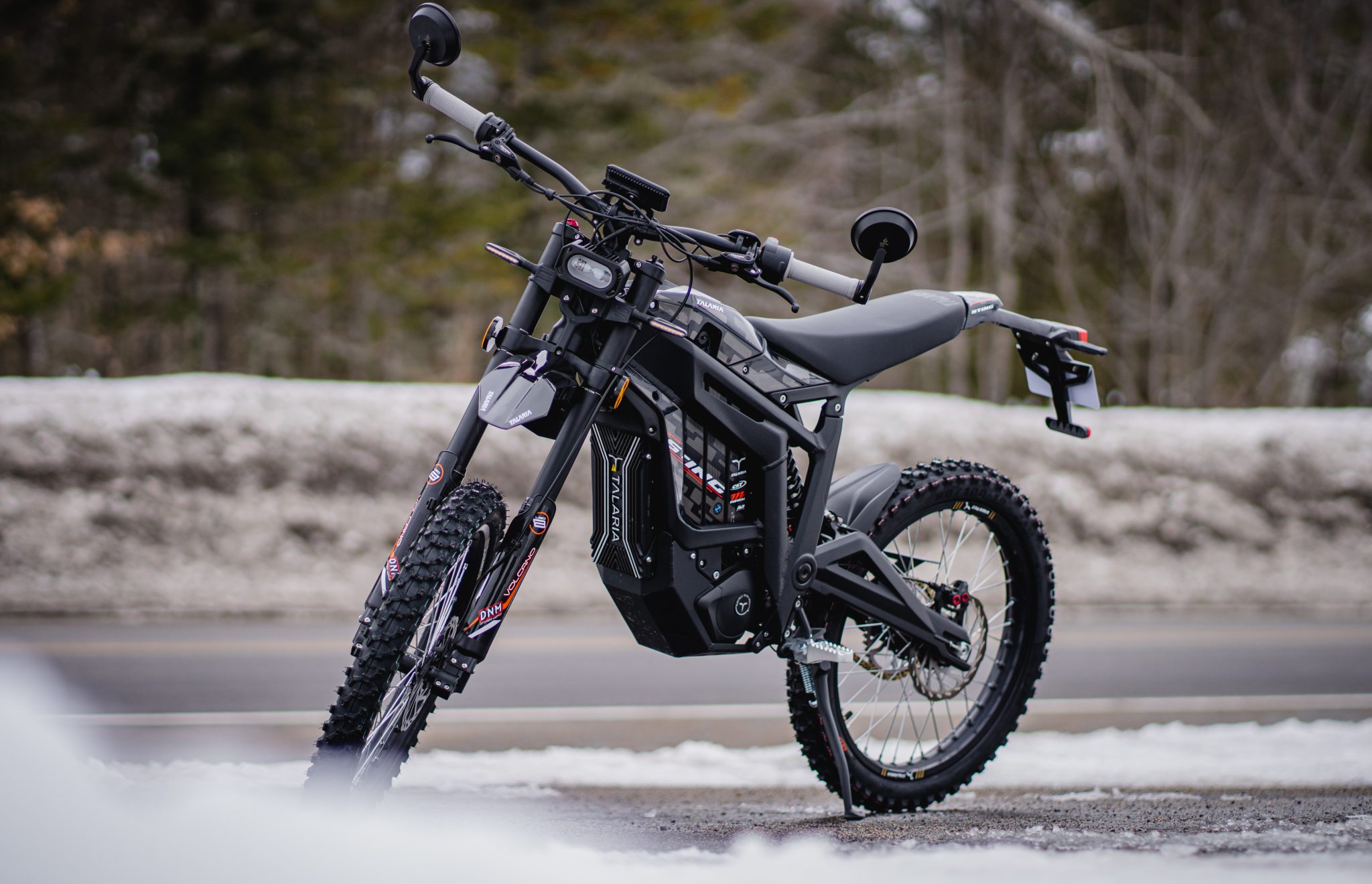

The Talaria STING electric dirt bike was born to bring cutting edge performance to all riders. It features a CAD designed light weight frame design, a powerful electric motor delivering instant torque, transferred through an intelligent gear drive whilst operating extremely quietly. Its compact well-balanced structure is very easy to maneuver, and requires minimal maintenance. All these features make STING an ideal off-road bike for more people than ever to enjoy the passion and thrill of off-road riding adventures.

• Currently on stock – Shipping time 5-10  working days.

TALARIA STING TECH SPECS

VEHICLE

Chassis Material
Process Method
Surface Method
Headlight

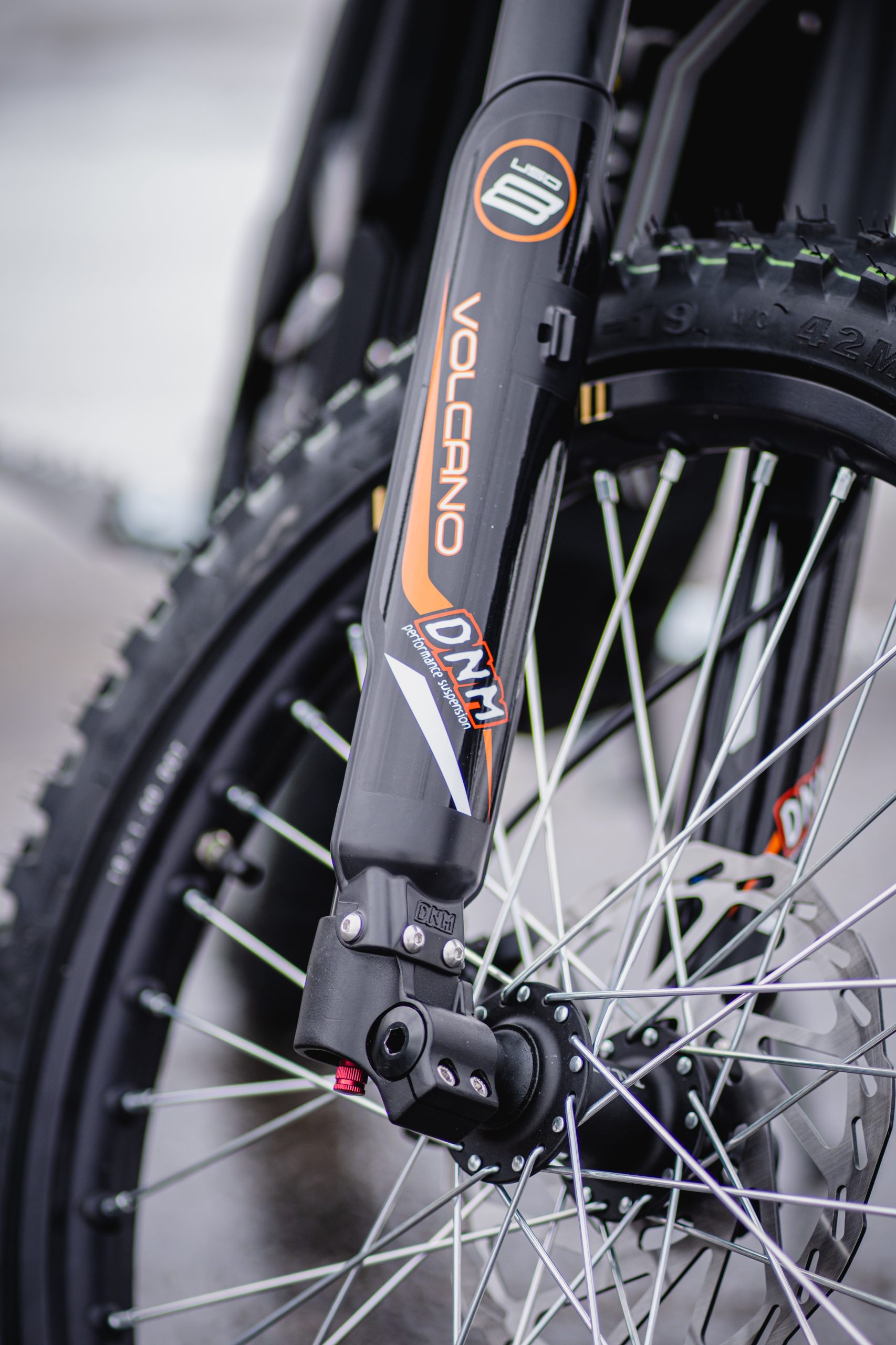

Front Fork
Rear Shock
Max. Range
Net Weight
Vehicle Dimension
Seat Height
Handlebar Lenght
Ground Clearance

6061 T4 & T6 Aluminium Allow
Forged by 6000 Tons Pressure
Anodizing
LED
Fastace / Talaria Factory
Fastace / HT / Talaria Factory
50 km @ 70 Km/h
65 Kg (Including Battery)
1850mm x 770mm x 1075mm
870mm
760mm
280mm

MOTOR

Motor type
Mounting PositionWeight
Motor Ext. Diameter
Peak Efficiency
Cooling Method

LPMSM
Middle of the Frame
7.0 kg
180mm
92%
Air Cooled

CONTROLLER

Controller Type
Weight
Dimension
Peak Efficiency
Highest Work Temp

FOC
2 Kg
248mm x 128mm x 50mm
92%
100°

POWERSYSTEM

Nominal Voltage
Nominal Torque
Peak Torque
Rear Wheel Torque

60V (DC)
≥5.7 N.M
34 N.M
284 N.M (44T Sprocket) / 309 N.M (48T Sprocket)

TRANSMISSION

Gear Ratio
1st Transmission
2nd Transmission

8.35 (44T) / 9.18 (48T)
Gearbox
Chain

ELECTRONICS

Battery Pack
Battery Size
Battery Weight
Battery Cells

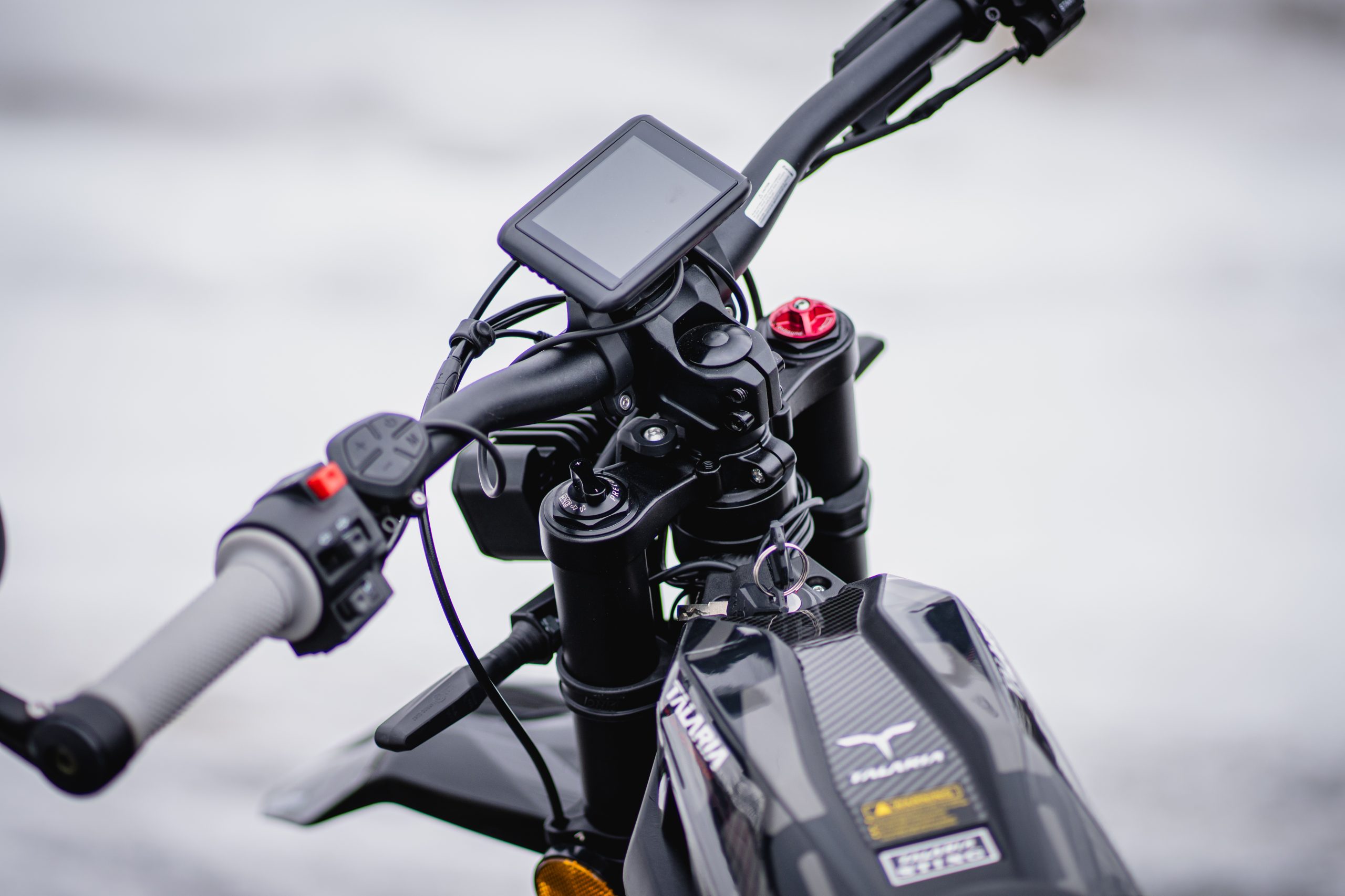

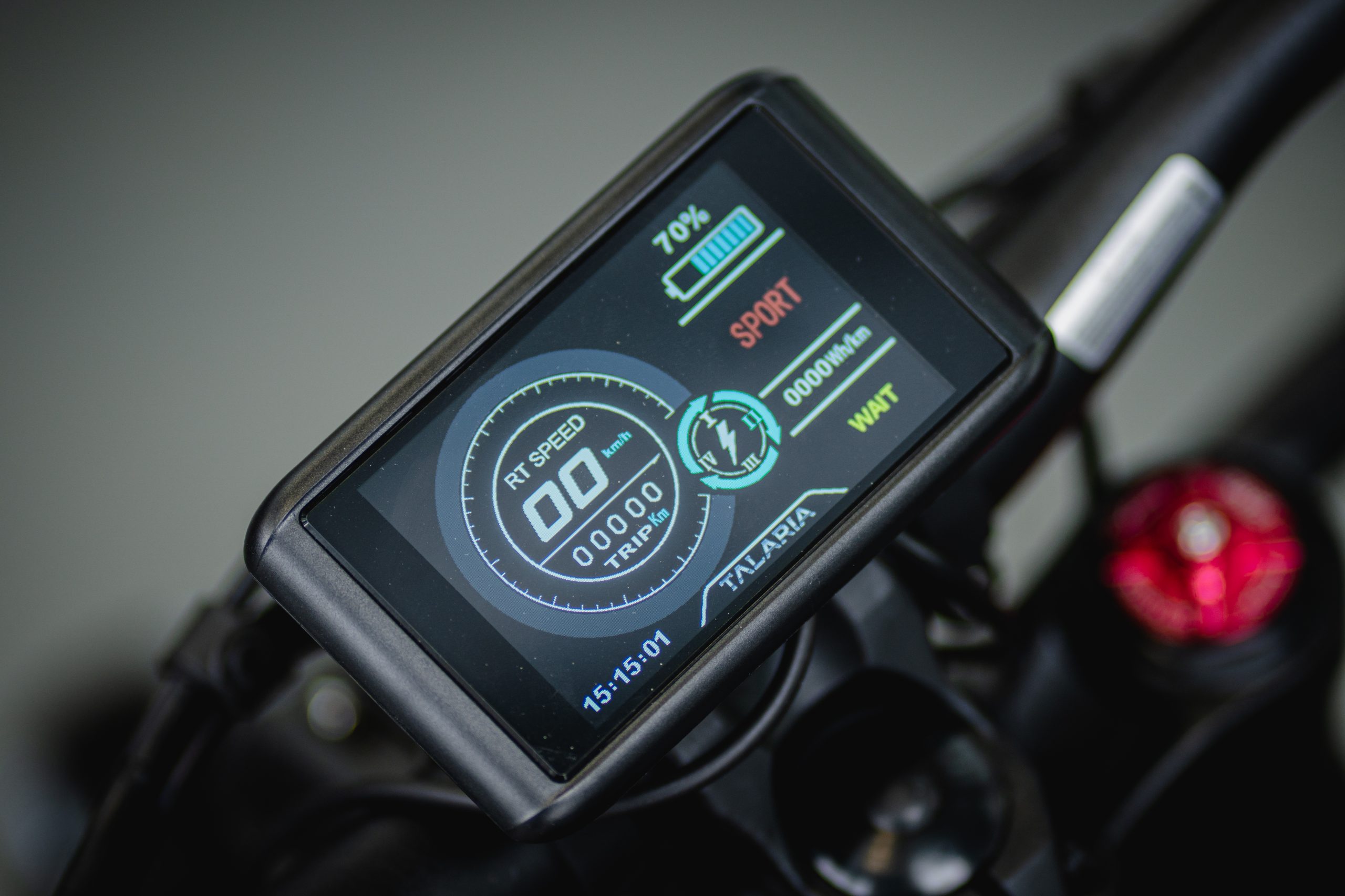

Speedometer
Regen Adjustement

60V 38.4AH
170mm x 140mm x 380mm
12.85 KG
LG Brand 21700 Cell (5000 MAH/Cell)
Speed / Battery Level, Voltage, cycle / Odometer
4 Levels Adjustable in the Speedometer
